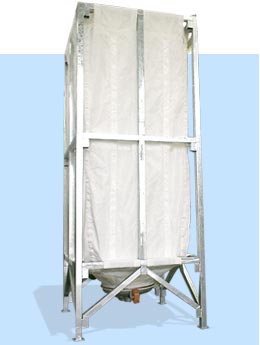

“EXTRA TOUGH” TREVIRA SILOSACS for indoor use have a reinforced sack-type body which breathes, is dustproof, and has a filtering roof for bleeding and filtering air during filling.
It is made to measure on a square or rectangular base, to meet all storage requirements, with a modular structure made of hot galvanised piping and a storage capacity of 3 m3 to 60 m3.
This type of silo is supplied complete with a loading pipe and a vibrating AISI 304 stainless steel extractor for pneumatic and/or mechanical extraction.

A number of options are available upon request:

- inspection window
- palette or inductive level indicators
-
weighing system with visual and acoustic control
of the quantity of product introduced into the silo

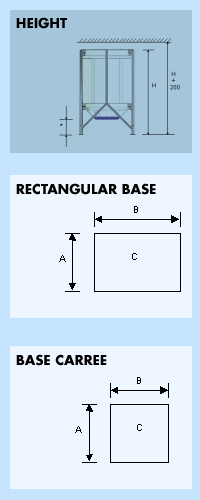

MODEL
Cubic volume
m3
H mm
AxB mm
Capacity
Kg.
HH 20/20 - T20
5
2000
2000 x 2000
3100
HH 20/20 - T28
8
2800
2000 x 2000
4800
MM 24/24 - T30
12
3000
2400 x 2400
7200
MM 24/24 - T40
17
4000
2400 x 2400
10000
SS 30/30 - S35
20
3500
3000 x 3000
12000
UU 34/34 - S35
24
3500
3400 x 3400
14000
UU 34/34 - S35
30
4000
3400 x 3400
18000
VV 36/36 - S50
44
5000
3600 x 3600
26000
VV 36/36 - S55
50
5500
3600 x 3600
30000
VV 36/36 - S60
56
6000
3600 x 3600
34000

Useful capacity considering products with a specific weight of 0.6
